25 August 2008

DIY Home Theatre Speakers

Back in September 2007 Adam constructed a pair of 3-Way DIY Tower Loudspeaker using all HiVi Research drivers. Well, as most of us in this hobby know - once you start building, you just can't stop! The photo below shows Adam's HT setup up in 2007 sporting his new DIY tower loudspeakers.

HiVi F8 F8 SD1.1A Tower Speakers
And here is a more recent photo of his HT setup.

HiVi Loudspeakers Subwoofer and Center Channel
In the photo are a couple of new projects. A DIY HiVi SP10 10" subwoofer and a DIY HiVi home theatre center channel. Consistent with his previous tower loudspeaker build, only drivers from HiVi Research were used and all of the speaker enclosures are constructed using MDF with a black oil based epoxy paint finish and red oak trim.

Adam reports excellent results and seamless integration with his HT setup. His only complaint is that he needs matching rear channels now. I am sure it will only be a matter of time before we see those. See the project pages for full information about these home theater loudspeakers:
What's Playing: A Flock of Seagulls - Telecommunication

05 August 2008

Hybrid (12AU7 / IRF612) Headphone Amplifier

Over the past few years, headphones have come long a long way. For $70 to $150 you can get a great sounding pair of headphones. Best of all, headphones allow you to get right into the music anywhere you are and you do not have to worry about annoying things like room modes and reflections. And for you do-it-yourself (DIY) audiophiles, there are also a number of great DIY headphone amplifier projects that you can choose from. Here are the details for Rogers' low voltage 12AU7 tube hybrid headphone amp.

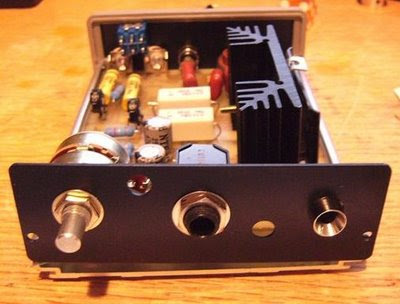

12AU7 Tube / IRF612 Mosfet Headphone Amp
Vacuum Tube / Mosfet Hybrid Headphone Amp
Rogers has put together a very simple hybrid headphone amplifier for use with 32 ohm Grado SR125 headphones. His hybrid head amp uses a vacuum tube voltage gain stage which feeds a MOSFET follower output stage. The tube is a the 12AU7 (ECC82) and the MOSFET is an inexpensive IRF612. The IRF612 is configured in a typical single-ended class A circuit using a passive constant current source (CCS).

What's best about this project is the power supply.
Both the 12AU7 tube and IRF612 MOSFET are set up to operate at low voltage (~12-13V). Power for this project is supplied via an external switch mode power supply (SMPS). All of the project parts are readily available and one can easily put together one about $40. Rogers has reported very good results from this very simple project. For full project details, see the 12AU7 Tube / IRF612 MOSFET Hybrid Headphone Amplifier Project.
